Definitions of Technical Terms in Hydraulic Structures

By: Haseeb Jamal / On: Nov 12, 2017 / Definition



Khadir:

Flood plain of river. Khadir axis is a line passing through the center of the river course between the two high banks up to back water effect.

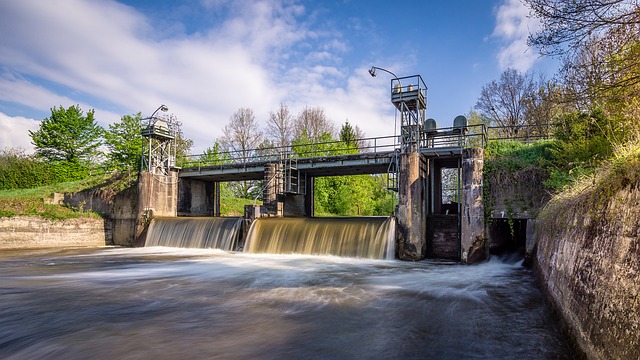

Weir axis:

Line along which the crest of the weir is laid.

River axis:

Line parallel to Khadir axis at the center of weir or barrage axis between the abutments.

Headwork axis:

Line perpendicular to weir axis at the center of weir abutments.

When the angle between the headwork axis and the river axis exceeds 10°, the problem arises of concentration of flow on one side and island formation due to heavy silting within the guide bank on the other side. If the river axis is to the right of headwork axis, the concentration of flow is generally generally on the left side with consequent tendency to form an island on the right side and vice versa.

  1. Should be located far below the influence of two river
  2. Preferably located in the center of plain asymmetry result in shoals formation

Retrogression:

It is a temporary phenomenon which occurs after the construction of barrage in the river flowing through alluvial soil. As a result of back water effect and increase in the depth, the velocity of water decreases resulting in deposition of sedimentation load. The water flowing through the barrage have less silt, so water picks up silt from downstream bed. This results in lowering d/s river bed to a few miles. This is known as retrogression. It may occur for the first few years and bed levels often recover their previous level. Within a few years, water flowing over the weir has a normal silt load and this cycle reverses. Then due to greater depth, silt is deposited and d/s bed recovers to equilibrium. Retrogression value is minimum for flood discharge and maximum for low discharge. The values vary (2-8.5) ft.

Accretion:

It is the reverse of retrogression and normally occurs u/s, although it may occur d/s after the retrogression cycle is complete. There is no accurate method for calculating the values of retrogression and accretion but the values which have been calculated from different barrages can be used as a guideline.
