Time History Analysis SAP2000

By: Haseeb Jamal / On: Aug 01, 2017 / SAP2000

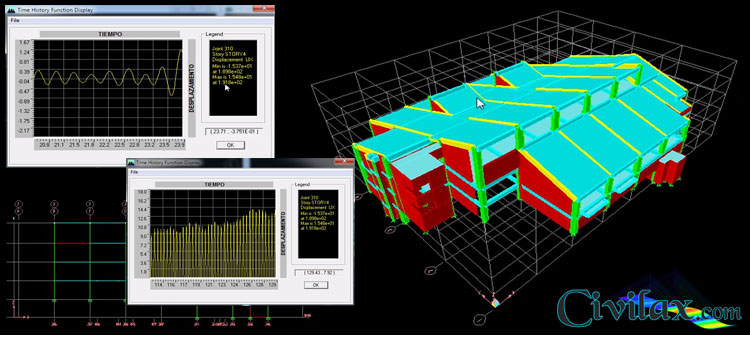

Time History Analysis SAP2000


  • Define >
    • function > time history
    • Function type = function from file
    • Name = TH
    • Browse & select elcentro.
    • Values = time and function value, display
  • Define > Analysis Case
    • New case name = THx
    • Analysis case = time history
    • Load type = Accel, load name = U
    • Function = TH, scale = 32.2
    • Select lines, model, transient.
  • Select THx
  • Add copy name Thy
    • Load name = U2
    • Do rest of the work for structure analysis

After Analysis:

  • Display > show deformed shape,
    • Select model,
    • Start animation and
    • Change model
